Customization:Available
After-sales Service:12 Months
Warranty:12 Months
-------Welcome------
Qingdao MAXX Auto Parts Co Ltd
PRODUCTS INTRODUCTION
#Trucktirechanger #T568 #tirechanger #tyrechanger

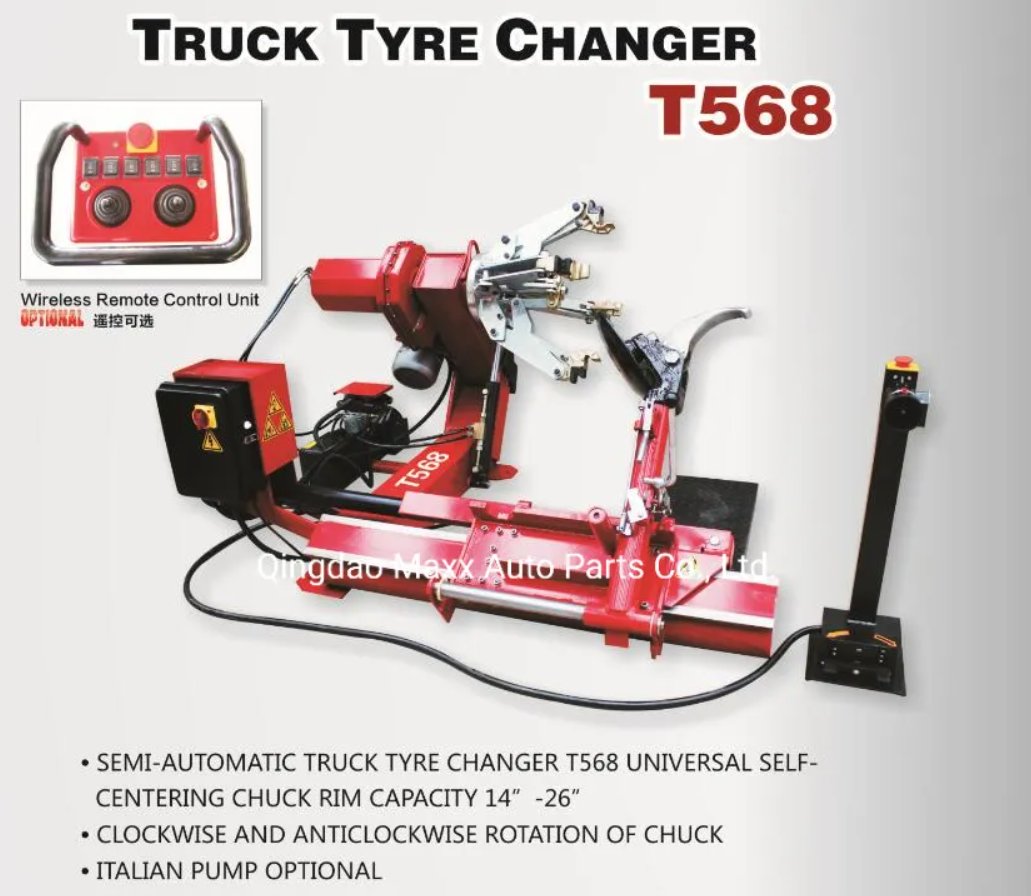

· Semi-Auyomatic truck tyre changer t568 universal
· Self-Centering chuck rim capacity 14"-26"
· Clochwise and anticlockwise rotation of chuck
· Italian pump optional
TECHNICAL DATA
Rim Diamter 14" - 26"
Max.wheel weight 500kg
Max Wheel Width 780mm
Max Tyre Diameter 1600mm
Hydraulic Pump Motor 1.5KW 380V - 3PH(220V Optional)
Gearbox Motor 2.2KW 380V - 3PH(220V Optional)
Bead Breaker Force 2500kg
Max.Torque 6457N.m
Operation Control Voltage 24V
Machine Weight Approx 517kg
Overall Dimensions Approx 2500×2000mm
Power 220/400V 50/60HZ 1P/3P Optional
1* Full hydraulic control.
2* Main motor and the related distribution components comply with the CE standard, 24 v low voltage control electric cabinet;
3* Mobile work station, convenient operation when the Angle observation in case of error. Speak to make cross switch pedal switch and use electrical appliances imported products.
4* Equipped with a stop button, make the operation more safe and reliable.
5* Positive &negative way, convenient and customer requirements.
6* The robotic arm has automatic regulating lock rims
7* Hydraulic station from the sino-italian joint venture factory production of high quality products
Service:
* We will reply to you for your inquiry in 24 hours.
* Once you make the order, we will update your order status from time to time, you don't need to worry about goods. Even you don't have the importing experience, we also can help you to handle it from beginning to end. Until you received the goods in your warehouse.
* Almost all our old customers increase 30%-50% business every year. We believe we can also help you.
Never Need To Worry About The After-Sale Service, We Will Always Be Here To Support Your Business!
