Customization:Available
Type:Torque Wrench
Brand:Maxx
-------Welcome------
Qingdao MAXX Auto Parts Co Ltd
We can ship to all over the world.
Specifications:
Manual type, suitable for the occasions where it requests for high torque but power supply or space is limited.
Sophisticated planetary gear system for torque multplying, accuracy ±5%
Equipped with anti-returning device, more convenience and safe
High torque/weight ratio, fulfill the locking / unlocking job easily with the hand wrench
Easily switch from clockwise to anti-clockwise direction by the reversing lever and buttons.
After-sales service: 1 year guarantee period, life-long maintnance.
Supply scope: 1 pcs manual torque multiplier,1 pcs reaction arm, 1 set operating instructions
| Material | 40Cr |
| Length | 330mm |
| Gear ratio | 1:78 |
| Max safe output torque | 5800N.M |
| Weight | 9.5kg/set |
| Carton size | 42*34*22cm |
| Sockets | 4pcs |

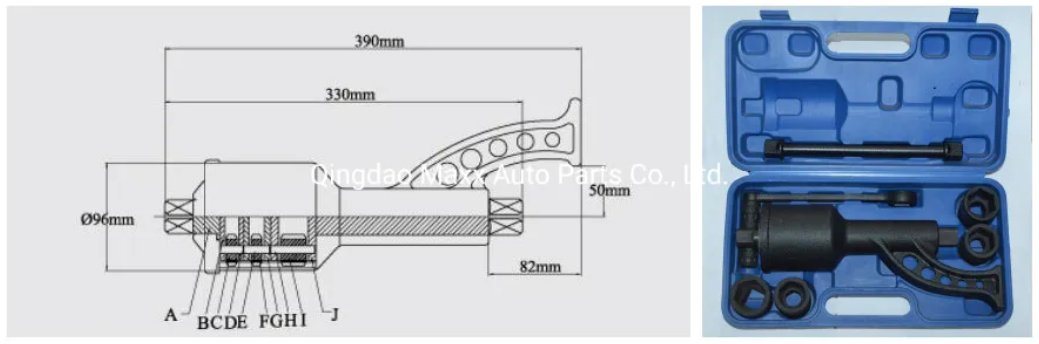

| Code name | A | B | C | D | E | F | G | H | I | J |
| Name | Main imput shaft | 2-stage imput | H17 Gear | Pin | Pin | H17 Gear | 3-stage imput | Pin | H25 Gear | Output shaft |
| Quantity | 1 | 1 | 4 | 4 | 4 | 4 | 1 | 4 | 4 | 1 |
| Gear Modulus | 3 | 3 | 3 | 3 | 3 | 3 |
Package: Carton-Pallet.
3 set/carton. 17 cartons/pallets.

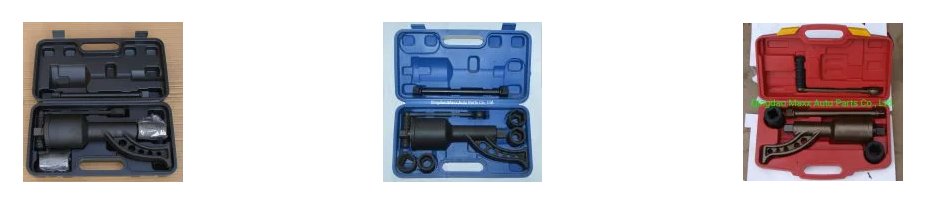

More models is available.
